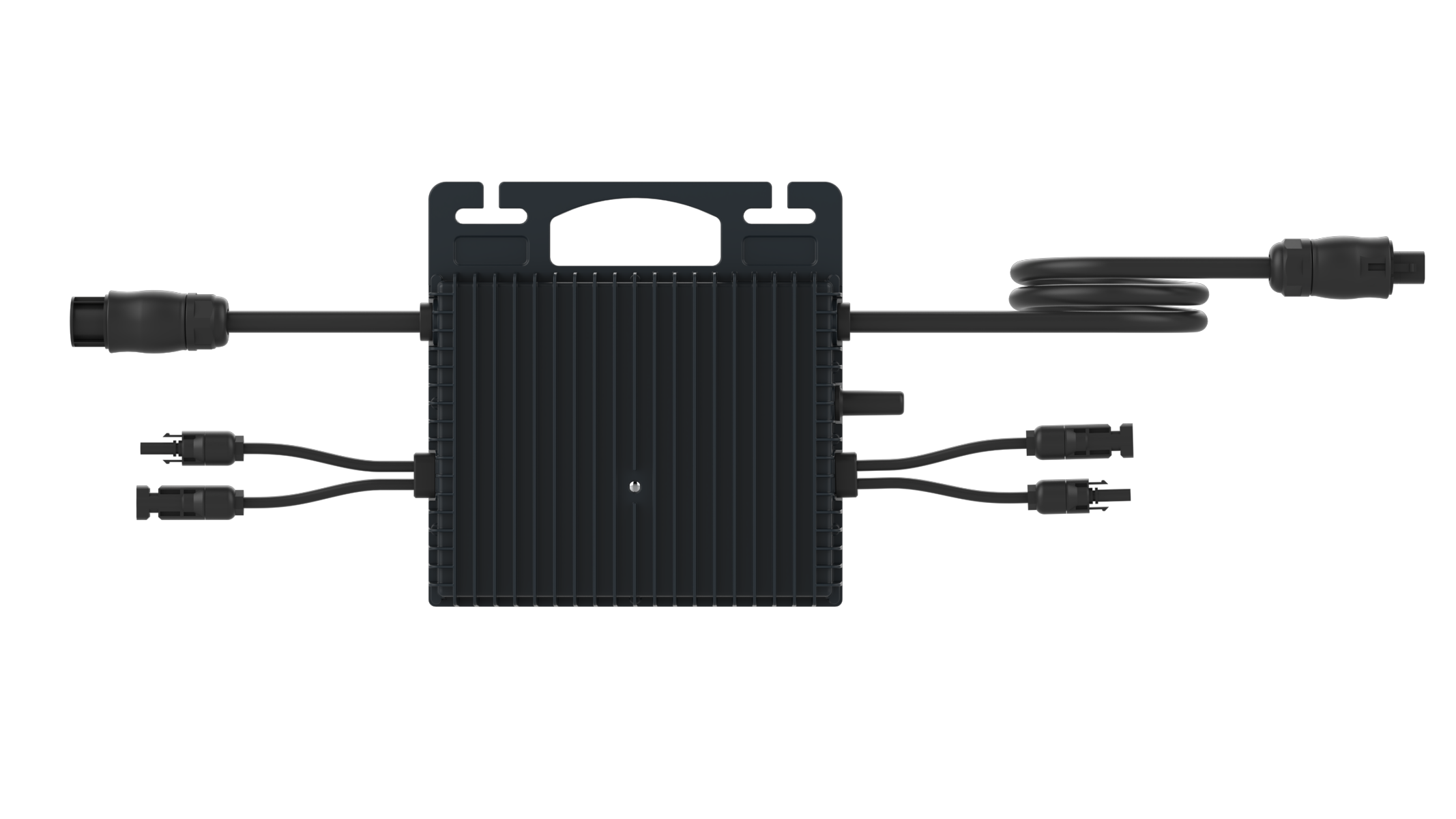

Micro Inverter
Series model: GB300-SMI/GB600-SMI/GB800-SMI/GB1200-SMI/GB1500-SMI/GB2000-SMI
Depending on the model, each unit can be connected to 2-4 (1 300W) modules with an independent MPPT channel.
Safer rooftop PV with fast closing standards.
Electrically isolated high frequency transformer.
The output power factor is adjustable.
Protection against island effect.
Smart
Victron OTA upgrade, keeping your inverter working at its best at all times.
User-friendly
Simple and lightweight, easy to install.
Efficient
Component-level control technology for a more efficient and reliable power station.
Safe
60V DC safe voltage for added safety and protection.
Product Specification
Model | GB300-SMI | GB600-SMI | GB800-SMI | GB1200-SMI | GB1500-SMI | GB2000-SMI |
Input Parameters [DC] | ||||||
Recommended Power [W] | 250-400 | |||||
Maximum Input Voltage [V] | 60 | |||||
MPPT Voltage Range [V] | 24-48 | |||||
Operating Voltage Range [V] | 16-60 | |||||
Maximum Input Current [A] | 12 | 12x2 | 12x2 | 12x4 | ||
Number of MPPTs | 1 | 2 | 2 | 4 | ||
Output Parameters [AC] | ||||||
Maximum Continuous Output Power | 300 | 600 | 800 | 1200 | 1500 | 2000 |
Normal Operating Voltage Range [V]* | 230 or 240/180–275 | |||||
Normal Frequency Range [Hz]* | 50/47– 53 or 60/57–63 | |||||
Normal Operating Output Current [A] | 1.3 | 2.6 | 3.4 | 5.2 | 6.5 | 8.7 |
Power Factor (adjustable) | 0.8Advance-0.8Lag | |||||
Harmonic Distortion | <3% | |||||
Operating Efficiency | ||||||
Maximum Efficiency | 0.965 | |||||
CEC Efficiency | 0.95 | |||||
Night Standby Power Consumption [MW] | 50 | |||||
Mechanical Parameters | ||||||
Operating Temperature | -40 °C to +65 °C | |||||
Operating Temperature Range | -40 °C to +85 °C | |||||
Humidity Range | 4% to 100% (Condensation) | |||||
Dimensions (Width x Height x Length, MM) | 180 x 160 x 36 | 230 x 236 x 36 | 230 x 236 x 36 | 230 x 236 x 36 | 230 x 236 x 36 | 280 x 236 x 36 |
Weight [KG] | 2.1 | 2.8 | 2.8 | 3.6 | 3.6 | 4.2 |
Protection Level | Outdoor-IP67 /NEMA Type 6 | |||||
Cooling Method | Natural Convection - Fanless | |||||
Features | ||||||
| Communication | Wifi/Zigbee | |||||
Isolation Type | Galvanically Isolated HF Transformer | |||||
Monitoring | Genbyte EMS cloud | |||||
*Nominal voltage/frequency range may vary according to local grid codes. | * | * | * | |||
